Constantly imitated, never surpassed.

Series LED Moving-Head Strobe Light
The Industry Pioneer, Reforged into a Classic

Product Core Positioning: The original version of China’s first LED moving-head strobe light. Tempered by a decade in the market and validated over millions of hours, it is the “indestructible anchor” of stage lighting effects.

Core Selling Points: Four Cornerstones that Define Reliability

Pioneering Classic, Pure Bloodline

Market Verdict: The “first-generation machine” of China’s LED moving-head strobe lights. The vast majority of similar products on the market today are improved and evolved versions based on this classic structure, circuit, and optical design. Choosing it means choosing authenticity and origin.

Ten Years of Validation, Absolute Reliability

Data-Backed: Thanks to its groundbreaking design, it has withstood over a decade of market demands and harsh performance environments, achieving an exceptionally high market share. Its quality is not just lab data—it is a “pre-approved” reputation forged through time, countless events, and the word-of-mouth of numerous rental companies.

Extreme Visuals: Slim Bezel, Expansive Light Surface

Design Revolution: Adopts an integrated panel LED and IC design, achieving an extremely compact structure. This allows the light-emitting surface to be unprecedentedly close to the tempered glass surface, eliminating the redundant space required by traditional designs. Customer Value: Realizes the “slim bezel, expansive light surface” visual effect. The light output is concentrated and explosive, delivering powerful visual impact without bezel interference, resulting in pure and stunning visuals.

Full-Protection Armor, Fearless in Any Environment

Military-Grade Structure: Full die-cast aluminum chassis provides exceptional structural strength and heat dissipation efficiency. True Waterproof Barrier: Overall protection rating reaches IP65, equipped with True1 waterproof power connectors and waterproof signal connectors. Whether in outdoor rainstorms, on-site mist, or dusty environments, it operates stably, completely eliminating the risk of performance accidents

Module

Configuration

Professional Analysis & Customer Value

Light Source System

Backlight: 480 pcs × 1.5W RGB 3-in-1 LEDs Strobe: 144 pcs × 5W 6500K White LEDs

Dual-engine Independent Output: RGB backlight handles immersive color rendering; 750W pure white blast light (144*5W) provides the core rhythmic impact that instantly cuts through darkness. Color and power are separately controllable, allowing for endless effect combinations.

Effect Engine

Movement & Control

Y-axis: DMX-controlled pan Control: 7/14/16/42/44 channel modes

Precise Dynamics: Y-axis pan gives light “life,” enabling sweeping, tracking, and other dynamic effects. Control Freedom: Offers multiple modes from basic 7 channels (quick setup) to full-featured 44 channels (pixel-level fine control), suitable for all console environments from bars to concerts.

Effect Engine

RGB Backlight: Upper 4 segments + Lower 4 segments, with built-in macro effects White Strobe: Divided into 4 segments, with built-in macro effects

Segment Programming: Both the 8 RGB segments and 4 white strobe segments can be programmed independently, enabling advanced effects like color chasing, localized strobe, and pattern combinations. Built-in macro effects allow even beginners to quickly access professional lighting looks

Connectivity & Protocols

DMX512, RDM, Sound-Active, Master/Slave, Wireless (Optional)

Full Protocol Compatibility: Integrates seamlessly into any existing lighting system. RDM remote monitoring allows real-time reading of fixture status for intelligent maintenance.

Application Scenarios & Sales Pitch:

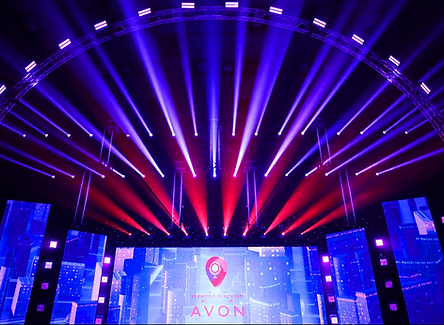

To Large Event Organizers & General Contractors: “Stadium concerts, New Year’s Eve galas—not a single show can afford to fail. The ‘Xuan Yuan’ series is a ‘veteran’ endorsed by top-tier events like the Olympics and major music festivals. Its IP65 true waterproofing and full die-cast aluminum body are your most reliable insurance against sudden weather changes. Choosing a classic means choosing a zero-risk safety net for the stage.” To Lighting Rental Companies: “Your equipment inventory needs a ‘cornerstone asset’. It might not be the trendiest, but it will undoubtedly be the toughest, most worry-free, lowest-maintenance profit generator. A decade of proven stability means minimal after-sales costs and the highest utilization rate. The classic model is the long-term money tree in the rental business.” To High-End Nightclubs & TV Studios: “We need equipment that runs at high intensity every single day without fail. The ‘slim bezel, expansive light surface’ design allows it to deliver the cleanest, most powerful effects both on camera and in the eyes of patrons. It is the silent workhorse, ensuring your brilliance night after night with absolute reliability.”
